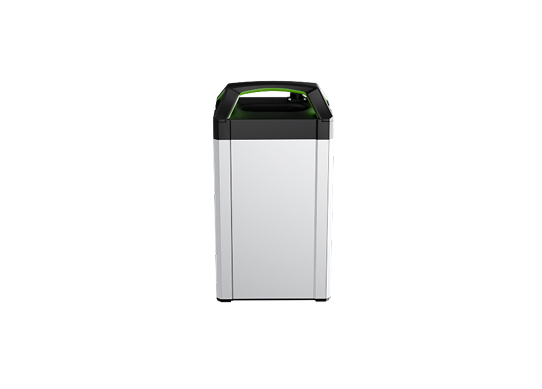

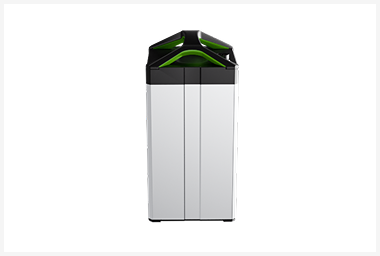

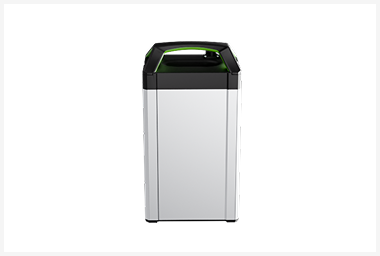

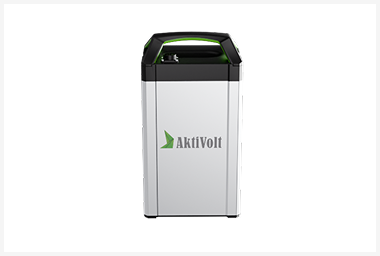

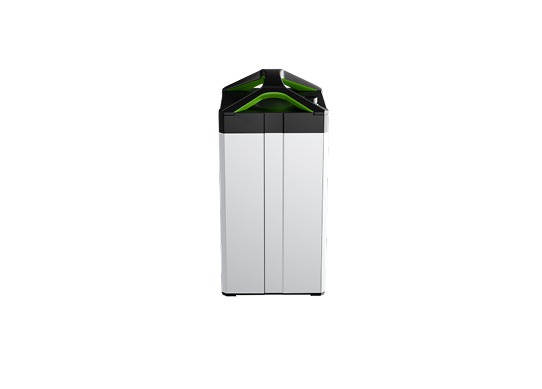

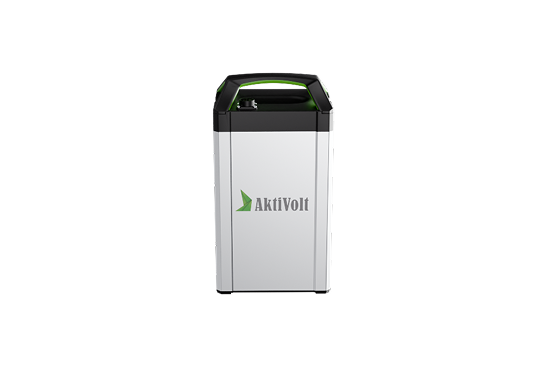

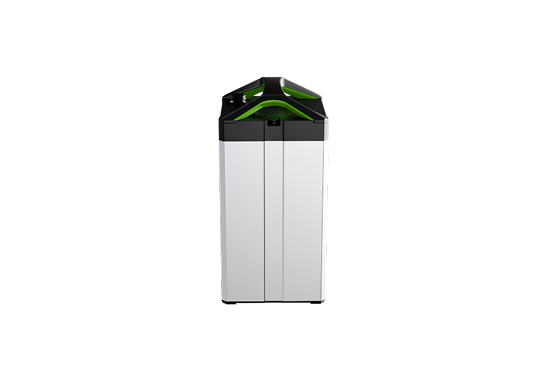

NMC 2.6KW PACK
- Built in IOT
- Multiple Voltages in Same Dimensions
- Modular and Scalable in Voltage and Capacity
- 48V-96V
Please fill the form, we will contact you soon
This mobility battery pack range is designed for electric two-wheelers, offering high efficiency, long cycle life, and reliable daily performance. The LFP variants deliver exceptional longevity and stable operation, making them ideal for consistent city commuting and extended use. The NMC variants provide faster charging and higher power output, suited for performance-focused EV applications. Available in LFP 1.5kW, LFP 2.3kW, NMC 2.6kW, NMC 4.2kW, NMC 3.9KW and NMC 3.1KW models these packs are compatible with a wide range of electric scooters and bikes. Each pack includes an advanced BMS for safety, protection, and dependable power delivery, making them suitable for both OEM integration and replacement battery needs.
| GENERAL BATTERY DETAILS | |
|---|---|
| Type of Battery | NMC |
| Energy | 2.6kWh |
| BMS | IN-HOUSE |
| IP Rating | IP67 |
| Dimensions | 216 × 165 × 396mm |
| Pack Nominal Voltage | 50.4V |
| Nominal Capacity | 52 Ah |
| Peak Voltage (V) | 58 |
| Cut off Voltage (V) | 41 |
| Max. Discharge Current (A) | 52 |
| Peak Discharging Current (A) | 78 |
| Connector Mating Cycles | 5000 cycles |
| Cycle Life @ 80% DOD @25°C | 600 cycles |
| Depth of Discharge (DOD) | 80% |
| OPERATING SPECIFICATION | |
|---|---|
| Charging Temperature | -10°C to 55°C |
| Discharging Temperature | -10°C to 60°C |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | 20°C to 45°C |
| CELL SPECIFICATION | |
| Chemistry | Nickel Manganese Cobalt (NMC) |
| Rating | 3.6 V, 5.2 Ah |
| Cell Make | BAK |
| Model | N21700C-58E |
| Form Factor | 21700 |
| BMS SPECIFICATION | |
| BMS Type | Microcontroller-Based System |
| Software Version | AKTF_LFP_052_ |
| Cell Balancing Method | Passive Balancing |
Accurate SoC & SoH Algorithms
Advanced algorithms ensure precise monitoring of State of Charge (SoC) and State of Health (SoH) for reliable battery performance and lifecycle management.
Intelligent Warning System
Built-in buzzer alerts provide real-time warnings for critical conditions, ensuring enhanced safety and user awareness.
Smart Connectivity
Equipped with Wi-Fi & Bluetooth for seamless wireless monitoring and remote diagnostics.
LECCS Charging Compatibility
Fully compatible with LECCS charging stations, enabling smooth and efficient charging operations.
IoT Integration
Compatible with Aktivolt IoT devices for real-time cloud data sharing, analytics, and remote monitoring.
Communication Interfaces
Supports CAN and RS485 interfaces for robust and flexible data communication with external systems.
Fault Management & Diagnostics
Advanced fault detection and diagnostic tools for predictive maintenance and quick issue resolution.
Data Logging
Continuous data recording ensures performance tracking and analytical insights.
Certified Safety
AIS156 Certified — complies with the latest automotive safety and reliability standards.
Warranty Coverage
Comprehensive 3-year warranty covering up to 50,000 km of assured performance.
- Electric 2 wheelers
- Electric 3 wheelers
- Low Power Electric 4 wheelers
