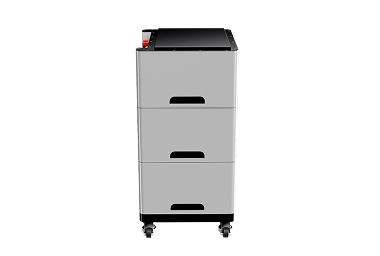

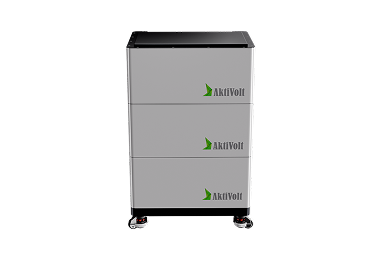

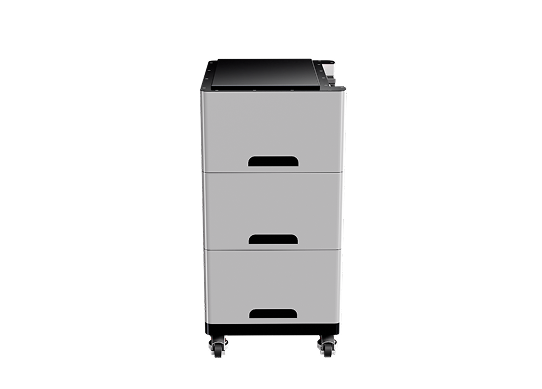

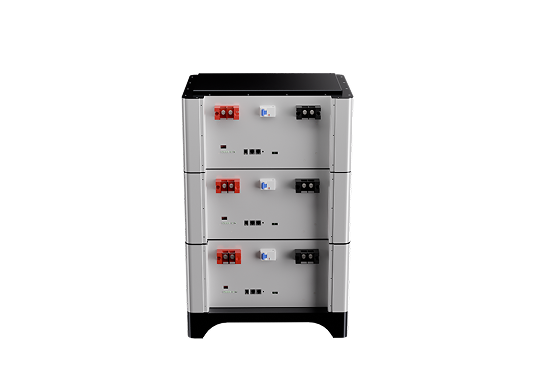

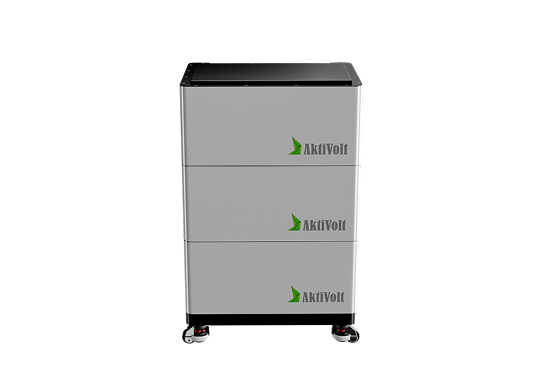

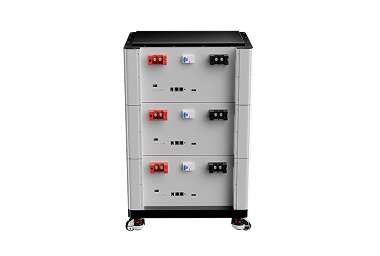

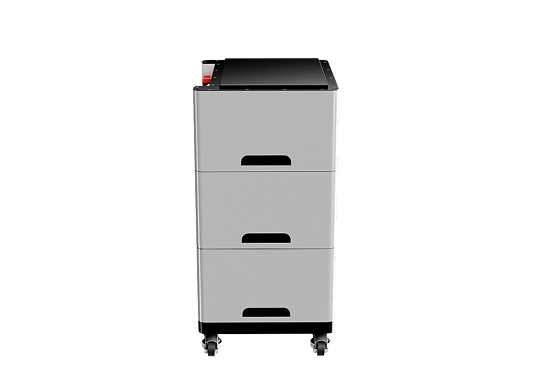

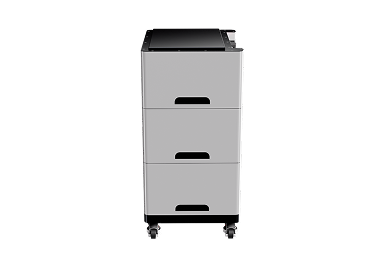

LFP 15KW PACK
- Cloud Connected - CAN/MODBUS/BLE/WIFI
- Remote Diagnostics/Troubleshooting/Configuration
- Modular & Scalable from 100kwh to GWh
- Stationary & Wheels
- 48 Volt
Please fill the form, we will contact you soon
A stackable ESS option is also available, with each module offering 5kW of capacity and expandable up to 15kW. This version is designed exclusively for floor mounting and can be supplied with either a fixed bottom stand or a mobile stand with wheels for easy relocation. It is ideal for residential backup, solar integration, and energy management applications.
| Cell Chemistry | LFP |
|---|---|
| Cell Type | Cylindrical |
| Nominal Voltage (V) | 48 |
| Nominal Capacity (Ah) | 315 |
| Energy (kWh) | 15 |
| Mounting Type | FLOOR MOUNT STACKABLE |
| Cycle Life @ 80% DOD | 3000 |
| BMS | INHOUSE |
| Peak Voltage (V) | 54 |
| Cut off Voltage (V) | 42 |
| Max Continuous Charging Current (A) | 100 |
| Recommended Charging Current (A) | 50 |
| Max. Discharge Current (A) | 100 |
| Peak Discharging Current (A) | 125 |
| IP Rating | IP55 |
| Dimensions (mm) (L×W×H) 3U | 500 × 390 × 764 |
| Weight | 128KG |
Made in India
Designed and manufactured locally, ensuring reliability, quality, and faster service support across the country.
Enhanced Safety
Built with multi-level protection and intelligent warning systems for overcharge, short-circuit, and thermal management.
Custom Protocols
Fully configurable communication and threshold settings, enabling seamless integration with diverse applications.
Anti-Theft Security
Equipped with advanced built-in anti-theft mechanisms to safeguard your energy assets.
Telecom-Optimized Design
Specially engineered architecture for telecom applications, delivering stability and efficiency under critical conditions.
IoT Ready
Supports CAN, RS485, RS232, and Modbus interfaces with remote monitoring capability — enabling smart data connectivity and analytics.
Fast Charging
Features an inbuilt current limiter for faster, safer, and more efficient charging cycles.
Low Self-Discharge
Ensures long standby life, maintaining optimal performance even during extended idle periods.
- DG Replacement / Optimization
- Data Centers / Commercial / Industrial UPS
- Solar/ Wind / Grid Energy Storage
